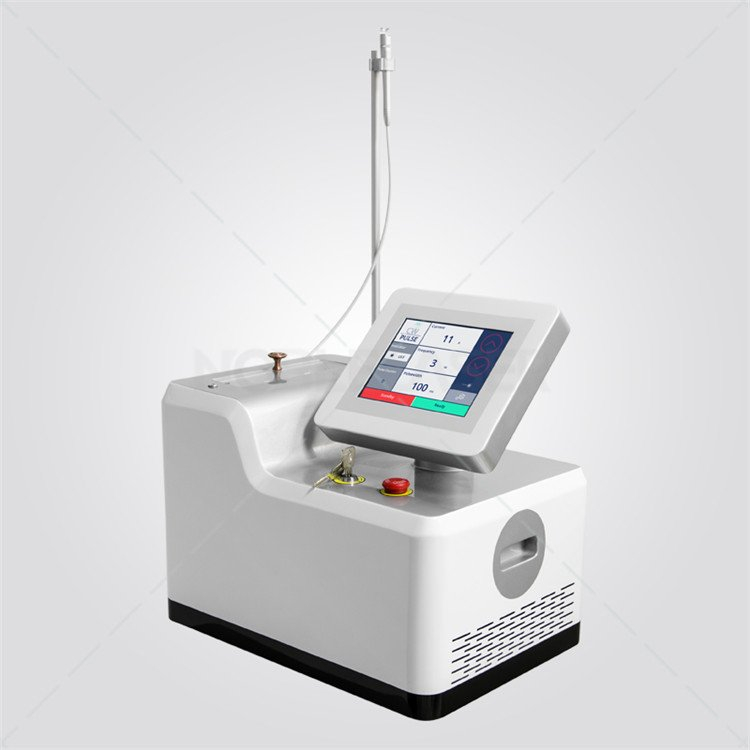

980nm Diode Laser Vascular spider vein Removal machine

  • VR-Pro


1. 980nm laser is the optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb, the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.
2. Compared with traditional method, 980nm diode laser can reduce redness, burning of the skin. It also has a less chance for scaring. To reach the target tissue more accurately, the laser energy is delivered by a professional design hand-piece. Assist with infrared ray 635nm, it enables energy to be focused onto a 0.2-0.5mm diameter range.
3. Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin's elasticity and resistance is also significantly enhanced.

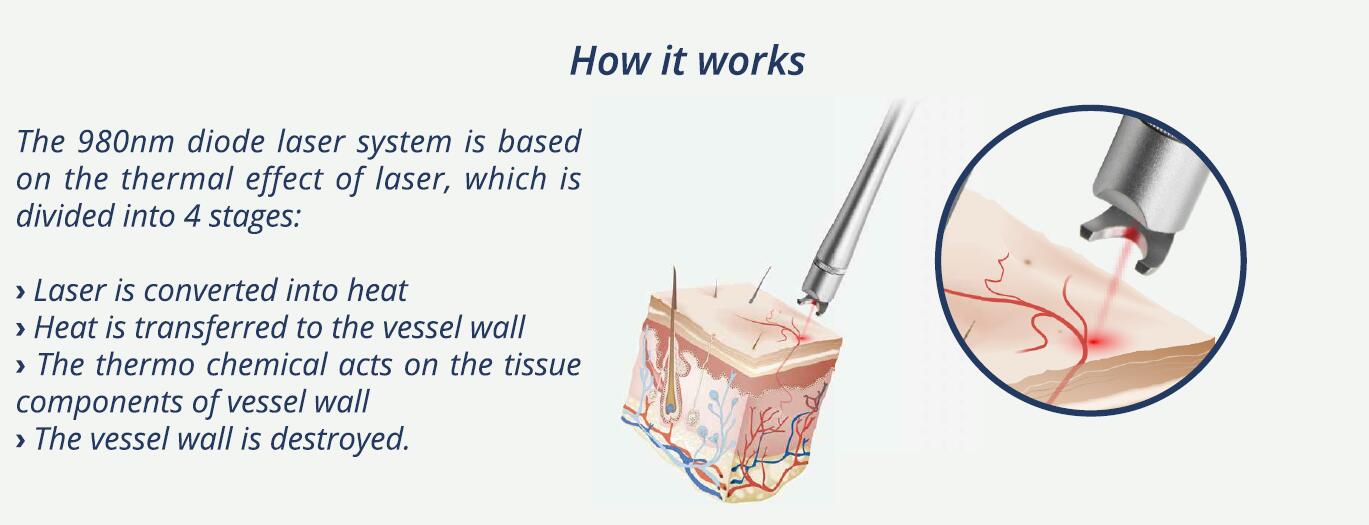

The 980nm diode laser system is based on the thermal effect of laser, which is divided into 4 stages:
1. Laser is converted into heat.
2. Heat is transferred to the vessel wall.
3. The thermo chemical acts on the tissue components of vessel wall.
4. The vessel wall is destroyed.

                         theory 1


1. Blood vascular treatment: Blood Spider clearance, vascular lesions
2. Pigmentation treatment: Remove speckle, age spots, sunburn
3. Skin protrusions treatment: wart, fat granule, hybrid nevus
4. Lymph edema
5. Acne removal, repair sunburn skin


1. 980nm diode laser vascular removal is the most advanced technology for vascular removal in the market.
2. Easy to operate. There is no injury, no bleeding, no scars afterwards, no downtime, no side-effect.
3. For slight vascular, one treatment or two is enough for permanent vascular removal, For serious vascular, 2~3 treatment could get same result. Interval of treatment should be 3~4 weeks. Please note that keep away water for one hour after finish therapy.
4. Newest treatment hand-piece, with 1.9m length, it is easy and comfortable to hold, meanwhile, doctors own a optimum viewing angle.
5. 8.4 inch LCD color touch screen, friendly interface.
6. Hand-piece could hanging on the 60cm frame during working time, it also could be store in box when off-duty.
7. Low cost for spider vein equipped with reusable fiber and special focusing hand-piece. There is no disposable element and the laser requires no ongoing maintenance, resulting in a very low cost of ownership.

Before & After

B&A 1


Laser Type 980nm Diode Laser
Beam Transmission Biquartz optical fiber transmission
Mode Pulse, CW
Power 30W
Current 1-10A
Pulse Width 10~150ms
Frequency 1-3Hz
Indicator 635nm infrared ray
Cooling System Air cooling
Hand Length 190cm
Screen 8.4inch color touch screen
