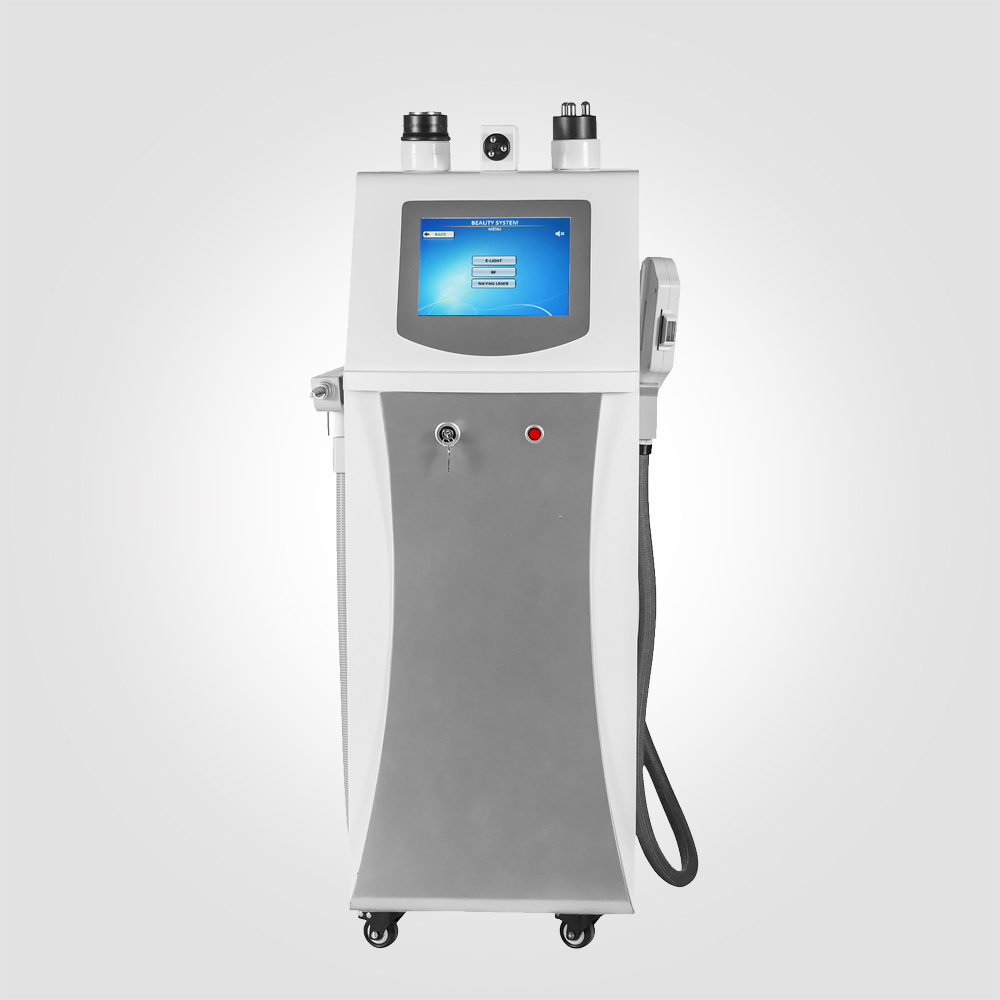

E-Light+RF+Nd YAG Laser multifunctional beauty machine

  • 3X-A


The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.
It uses 1-40MHz radio frequency to alternate the electric field in the skin from positive to negative. It will produce heat under dermis then the initial collagen denaturation. The adjuvant therapy of 635nm Diode laser greatly promotes the RF treatment effect. Subsequent neocollagenesis then further tightens the dermal tissue and make the skin tightening, smooth and fresh!

ND YAG laser:
It uses the theory that specific wave length (1064nm or 532nm) of laser will be absorbed by specific pigment. The high energy of laser, absorbed by the specific pigment, could cause the pigment to swell and explode, partial fragments of the pigment will be shot out of the body, and the other pigment fragments will be removed by your body's immune system over a period of time. Because the normal skin absorb little energy induced by laser at the wavelength of 1064nm or 532nm, so the laser could selectively targets and destroys tattoo pigments but not damage the surrounding normal tissues.


1. Acne treatment; Pigmentation treatment; Skin rejuvenation; Vascular therapy; Hair removal
2. Wrinkle removal; Body slimming and shaping, skin tightening; Facial lifting and tightening; Skin rejuvenation, pores lessen, skin whitening
3. Remove tattoo, including red, brown, blue and black; Remove tattoo of eyelid, eyebrow, eye line, lip line, etc; Remove freckles, foxiness, coffee, superficial and deeper speckles, age pigment, birthmark, nevus, sunburn spots, traumatic pigmentation; Black doll head can make skin whitening, skin rejuvenation



1. UK imported xenon lamp for Elight
2. 3 Japanese NCC capacitors
3. USA & German connector of handpiece


Before & After

B&A 3

B&A 4

B&A 5


Basic Specification
Screen 8.4~10.4 inch color touch screen
Cooling System Air+Water+Semiconductor cooling
Type Super Intense Pulsed Light
Wavelength 480-950nm: remove acne
530 -950nm: pigmentation treatment
560 -950nm: skin rejuvenation
590-950nm: remove vascular
640-950nm: remove hair
690-950nm/755-950nm/810-950nm: remove hair (optional)
RF Frequency 3MHz
RF Energy 1-100J/cm2
IPL Energy 1~50J/cm2
Power Supply
Spot Size
Max 2500W
Filter handpiece: 12*12mm2, 12*30mm2, 13*40mm2, 15*50 mm2

Filter fixed handpiece: 8*40mm2, 14*40mm2, 16*50 mm2
Pulse Number 1~6T
Pulse Interval 1~99ms
Pulse Width 0.1~9.9ms
Discharge Interval 1~4s
RF Delay 1~3s
Cooling Temperature -5~5°C
Tripolar RF system (Independent RF system)
RF Mode Monopolar, Bipolar, Tripolar
Energy 5~450J
Frequency 1-40MHz
Q-Switched Nd: YAG Laser
Heads 1064nm+532nm+Black doll(1320nm)
Power 500W
Pulse Energy 1000mj
Duration (width) 6ns
Pulse Repetition Rate 1-6Hz
Voltage 500-1000V
Indicator Infrared Indicator is available
Treatment Area 1-7mm²
Cooling System Air+ Water cooling
Tilt Sensor Available
