E-light+IPL+RF

Quantity:

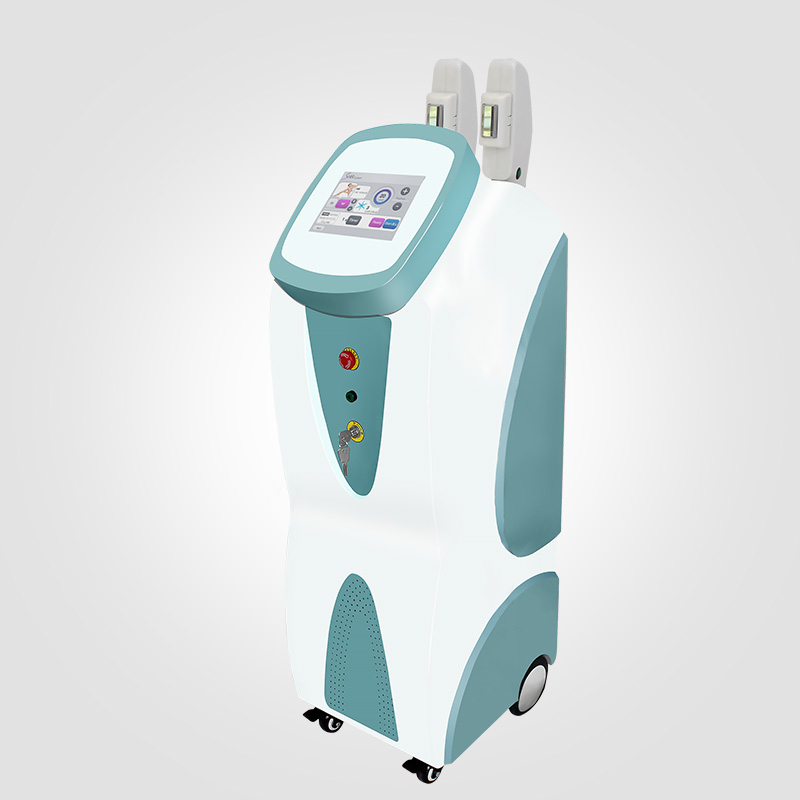

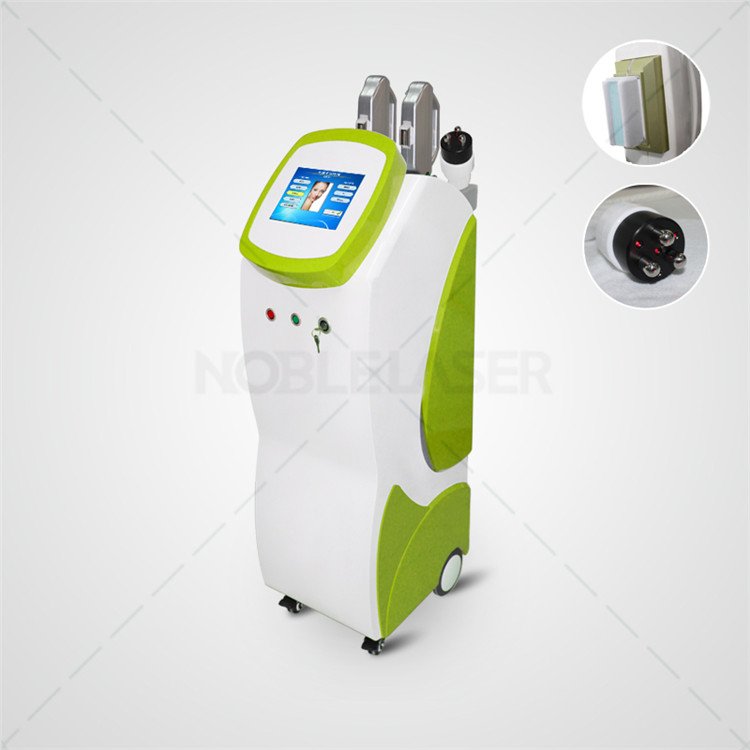

  • Eos 3H-B
  • NOBLE LASER

Elight:
The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.

IPL:
IPL (Intense Pulsed Light) adopts the principle that substance absorbs light selectively. As different target tissues absorbs pulsed light with different spectrum and the light acts on pigment. Through photo thermal and actinism, the machine could dispel pigment, concrete blood vessel, burn the hair follicle and stimulate the collagen to regeneration, then it will achieve the aim to dispelling speckles, treating telangiectasis, removing hair and rejuvenating skin. Because the normal skin absorbs little energy, so the treatment is safe.

RF:
It uses 1-40MHz radio frequency to alternate the electric field in the skin from positive to negative. It will produce heat under dermis then the initial collagen denaturation. The adjuvant therapy of 635nm Diode laser greatly promotes the RF treatment effect. Subsequent neocollagenesis then further tightens the dermal tissue and make the skin tightening, smooth and fresh!




1. Acne treatment; Pigmentation treatment; Skin rejuvenation; Vascular therapy; Hair removal
2. Wrinkle removal; Body shaping, Skin tighten; Facial lifting and tightening; Skin rejuvenation, pores lessen, skin whitening



1. UK imported xenon lamp for Elight
2. 3 Japanese NCC capacitors
3. USA & German connector of handpiece



B&A 1

B&A 2

B&A 3



Basic Specification
Screen 8.4~10.4 inch color touch screen
Cooling System Air+Water+Semiconductor cooling
E-light+IPL
Type Super Intense Pulsed Light
Wavelength 480-950nm: remove acne
530 -950nm: pigmentation treatment
560 -950nm: skin rejuvenation
590-950nm: remove vascular
640-950nm: remove hair
690-950nm/755-950nm/810-950nm: remove hair (optional)
RF Frequency 3MHz
RF Energy 1-100J/cm2
IPL Energy 1~50J/cm2
Power Supply
Spot Size
Max 2500W

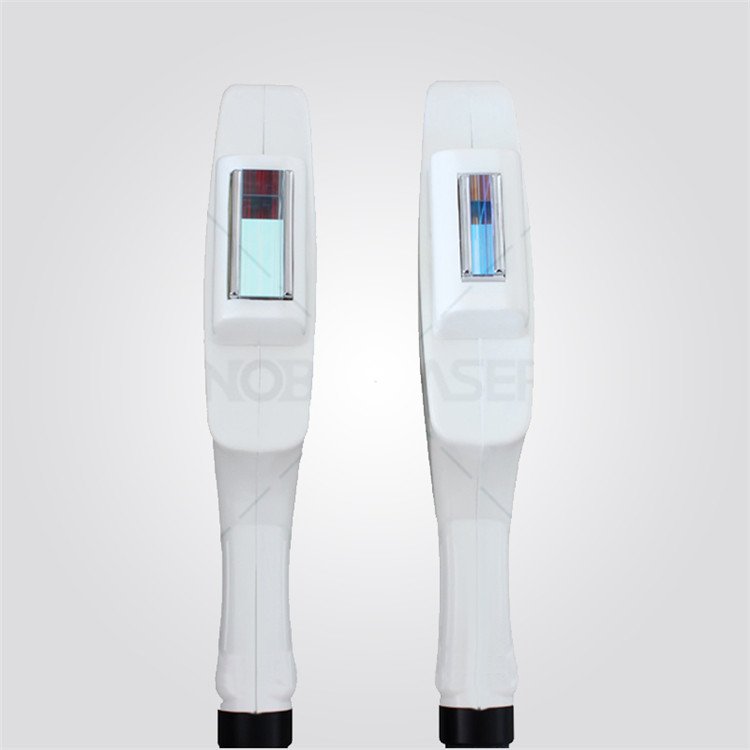

Filter handpiece: 12*12mm2, 12*30mm2, 13*40mm2, 15*50 mm2
  Filter fixed handpiece: 8*40mm2, 14*40mm2, 16*50 mm2
Pulse Number 1~6T
Pulse Interval 1~99ms
Pulse Width 0.1~9.9ms
Discharge Interval 1~4s
RF Delay 1~3s
Cooling Temperature -5~5°C

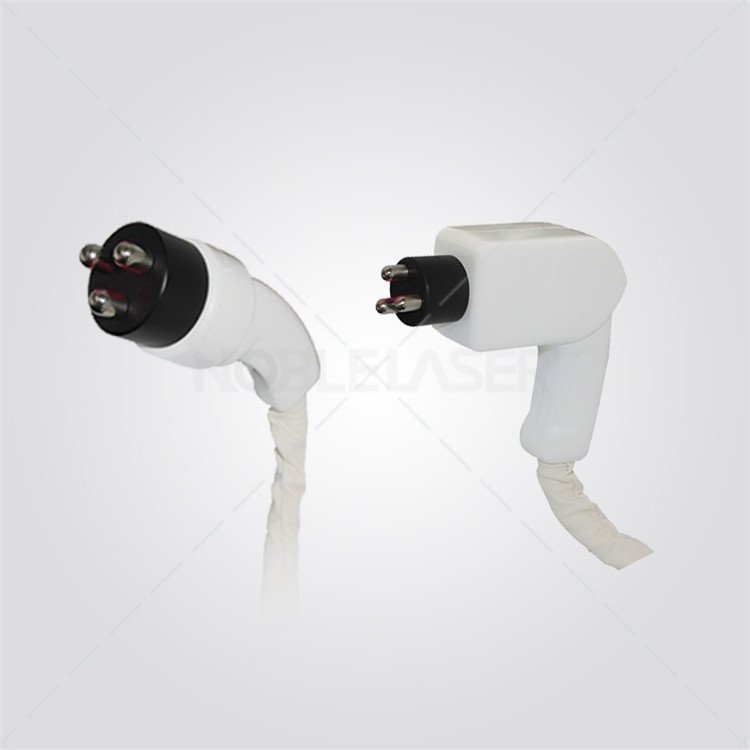

RF
Output Mode Tripolar
Energy 5~450J
Frequency 1-40MHz
