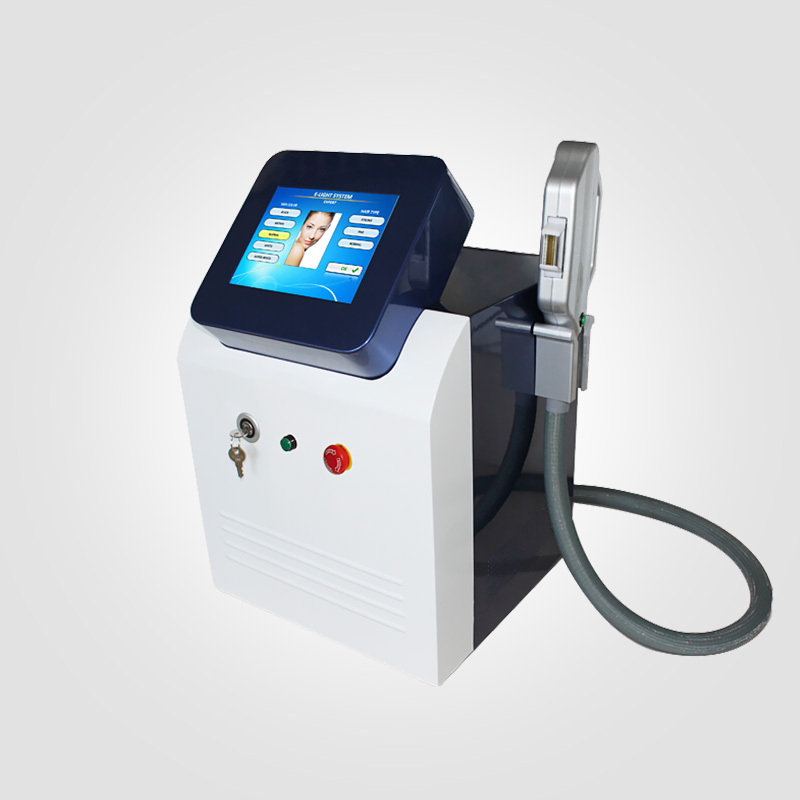

Elight SHR AFT IPL skin care beauty machine

  • Eos Portable-D

E-light hair removal skin rejuvenation machine

The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.
                              theory 1


1. Acne treatment
2. Pigmentation treatment
3. Skin rejuvenation
4. Vascular therapy
5. Hair removal



1. UK imported xenon lamp with high performance.
2. Japanese NCC capacitor with large-capacity and best performance.
3. USA & German connector of handpiece.
4. Different spot size suitable for different treatment areas.
5. Expert system with skin type and skin color selectable, easy to operate.
6. Air+Water+Semiconductor cooling, ensure painless experience for client.

Before & After

B&A 1
B&A 2


Type Super Intense Pulsed Light
Wavelength 480-950nm: remove acne
530 -950nm: pigmentation treatment
560 -950nm: skin rejuvenation
590-950nm: remove vascular
640-950nm: remove hair
690-950nm/755-950nm/810-950nm: remove hair (optional)
RF Frequency 3MHz
RF Energy 1-100J/cm2
IPL Energy 1~50J/cm2
Power Supply Max 2500W
Spot Size Filter handpiece: 12*12mm2, 12*30mm2, 13*40mm2, 15*50 mm2
Filter fixed handpiece: 8*40mm2, 14*40mm2, 16*50 mm2
Pulse Number 1~6T
Pulse Interval 1~99ms
Pulse Width 0.1~9.9ms
Discharge Interval 1~4s
RF Delay 1~3s
Cooling Temperature -5~5℃
Cooling System Air+Water+Semiconductor cooling
Screen 5.7~10.4 inch color touch screen
