Legend-I
NOBLE LASER

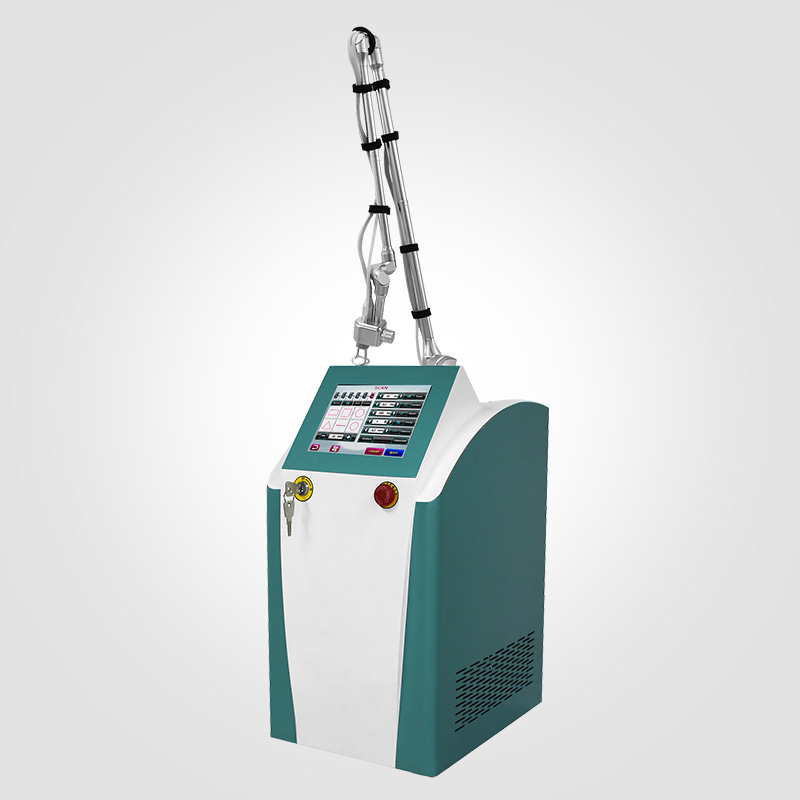

Portable Fractional CO2 Laser rf tube vaginal tightening machine

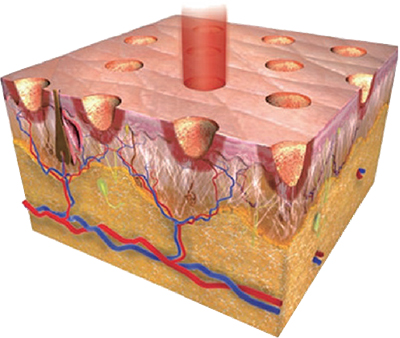

Fractional CO2 Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.
Application
1. Skin renewal and regeneration
2. All colors tattoo removal
3. Remove all kinds of wrinkles
4. Remove acne and scars
5. Remove neoplasms
6. Remove pigment
7. Treat telangiectasis
8. Sun damage recovery and skin renewing
9. Actenic keratoses
10. Face lift, tighten and whiten skin
11. Pierce ears
12. Effective treatment with skin hydroponic, skin rough
13. Teeth whitening
14. Vaginal tightening
15. E.N.T treatment
Advantage
1. Large LCD color touch screen, most humanist software control.
2. 7-jointed arm light conduct, more convenient operating,less costs. 12 shapes for chosen.
3. Use scanning field lens instead of focusing lens for better evenness for scan in a flat. The diameter of spot is only 0.1mm.

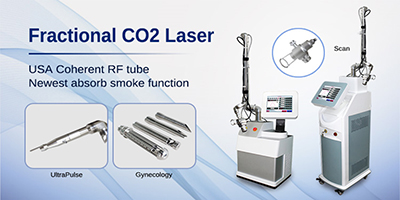

4. Scanning heads, cutting heads, E.N.T.&Dental heads, gynecology heads, andrology heads are suitable for more applications.
5. Powerful software adjusts parameter easily. There aremultiple graphics and scanning modes for your selection. Moreover, the graphics could be two-way adjusted.
6. Continuous, super pulse, fractional different Operation Modes, There is a wider use in clinical application.
7. Focal spot diameter and interval are adjustable. Patient’s unique needs can be met during treatment.
8. The best USA Metal RF laser tube, stable performance, high effective, no consumable costs.
9. Inhale and deflate air system is available.
Before & After
Specitication
| Light Conducting System | 7 jointed arms to conduct light |
| Laser | Metal RF driver tube(USA coherent) |
| Available Treatment Heads | Scan |
| UltraPulse | |
| Dental | |
| Gynecology | |
| Andrology | |
| Wavelength | 10.6µm |
| Power | 30W |
| Mode | Scan,Normal |
| Laser Energy | 5-120mj |
| Step Value | 5mj |
| Scan Patterns |  |
| Scan Pattern Size | 0.1x0.1mm-20x20mm |
| Scan Mode | Random; Sequence |
| Dot Quantity | 10000 dots at most |
| Pulse Duration | 0.2-4ms |
| Spot Distance | 0.1-2mm |
| Pulse Energy | 1mj to 120mj |
| Cooling System | Air cooling |
| Laser Apparatus | Sealed off laser device stimulated by direct current |
| Condenser Focus | f=50mm |
| Spot Size | 1.8±0.2mm |
| Radiation Time | 0.011s |
| Preview | Yes (635nm infrared ray) |
| Screen | 5.7~10.4 inch color touch screen |
Portable Fractional CO2 Laser rf tube vaginal tightening machine
Fractional CO2 Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.
Application
1. Skin renewal and regeneration
2. All colors tattoo removal
3. Remove all kinds of wrinkles
4. Remove acne and scars
5. Remove neoplasms
6. Remove pigment
7. Treat telangiectasis
8. Sun damage recovery and skin renewing
9. Actenic keratoses
10. Face lift, tighten and whiten skin
11. Pierce ears
12. Effective treatment with skin hydroponic, skin rough
13. Teeth whitening
14. Vaginal tightening
15. E.N.T treatment
Advantage
1. Large LCD color touch screen, most humanist software control.
2. 7-jointed arm light conduct, more convenient operating,less costs. 12 shapes for chosen.
3. Use scanning field lens instead of focusing lens for better evenness for scan in a flat. The diameter of spot is only 0.1mm.
4. Scanning heads, cutting heads, E.N.T.&Dental heads, gynecology heads, andrology heads are suitable for more applications.
5. Powerful software adjusts parameter easily. There aremultiple graphics and scanning modes for your selection. Moreover, the graphics could be two-way adjusted.
6. Continuous, super pulse, fractional different Operation Modes, There is a wider use in clinical application.
7. Focal spot diameter and interval are adjustable. Patient’s unique needs can be met during treatment.
8. The best USA Metal RF laser tube, stable performance, high effective, no consumable costs.
9. Inhale and deflate air system is available.
Before & After
Specitication
| Light Conducting System | 7 jointed arms to conduct light |
| Laser | Metal RF driver tube(USA coherent) |
| Available Treatment Heads | Scan |
| UltraPulse | |
| Dental | |
| Gynecology | |
| Andrology | |
| Wavelength | 10.6µm |
| Power | 30W |
| Mode | Scan,Normal |
| Laser Energy | 5-120mj |
| Step Value | 5mj |
| Scan Patterns | |
| Scan Pattern Size | 0.1x0.1mm-20x20mm |
| Scan Mode | Random; Sequence |
| Dot Quantity | 10000 dots at most |
| Pulse Duration | 0.2-4ms |
| Spot Distance | 0.1-2mm |
| Pulse Energy | 1mj to 120mj |
| Cooling System | Air cooling |
| Laser Apparatus | Sealed off laser device stimulated by direct current |
| Condenser Focus | f=50mm |
| Spot Size | 1.8±0.2mm |
| Radiation Time | 0.011s |
| Preview | Yes (635nm infrared ray) |
| Screen | 5.7~10.4 inch color touch screen |
